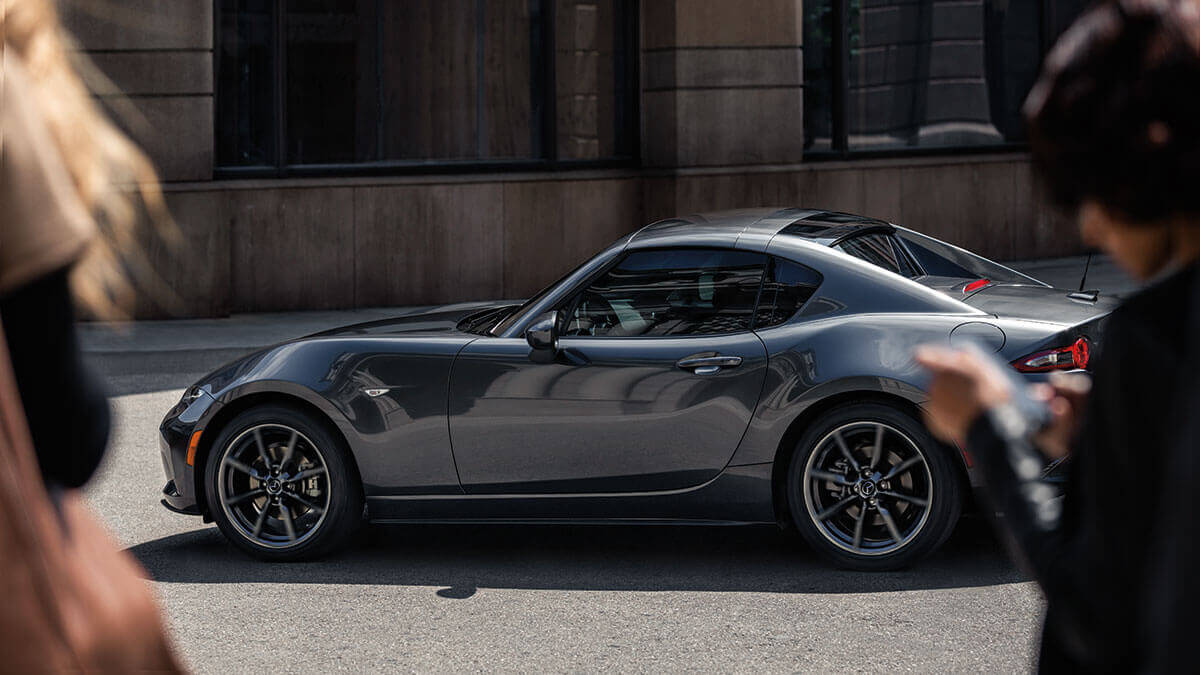

MAZDA MX-5 RETRACTABLE FASTBACK

THE PERFECT FIT

THE PERFECT FIT

How do you fit a rigid hardtop into a space just big enough for a folding cloth-top? After considering several methods, some as dramatic as splitting the roof into seven parts, our fearless engineers came up with a functional yet beautiful solution. They used the previous generation hardtop structure but redesigned each linkage to make it as rigid as possible. The result is a mechanism that is both quiet and efficient.

LEARN MORE

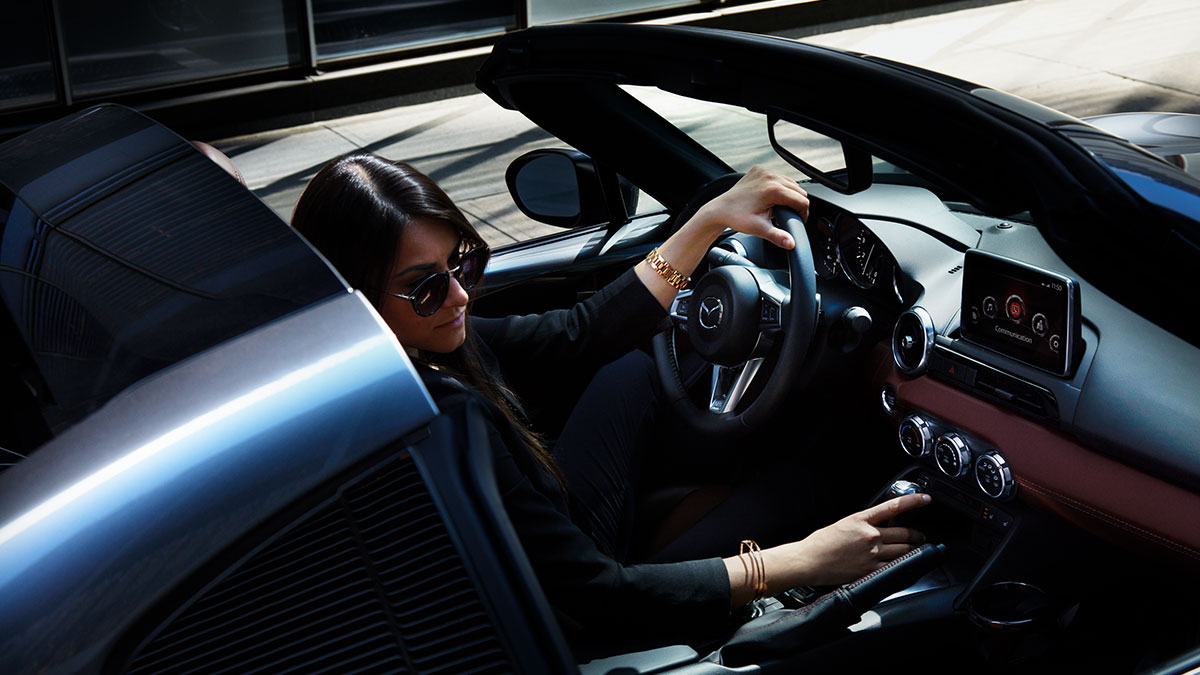

DROP THE TOP

DROP THE TOP

Our dedicated team of engineers worked tirelessly to produce a fastback roof that was both beautiful and functional. It had to move quickly and elegantly while complementing the silhouette of this sleek and mysterious roadster. After countless rounds of trial and error, our team developed a truly innovative, power-folding fastback roof that operates seamlessly in about 13 seconds.

LEARN MORE
SHAPING UP

SHAPING UP

The aluminum power plant frame has undergone a weight loss of nearly 20 percent from the Mazda MX-5's previous generation. That means a more connected and responsive driving experience every time you get behind the wheel.

LEARN MORE
THE JOY OF ROWING GEARS

THE JOY OF ROWING GEARS

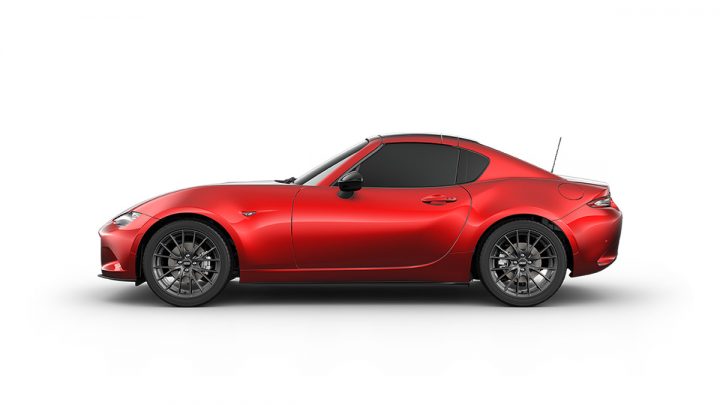

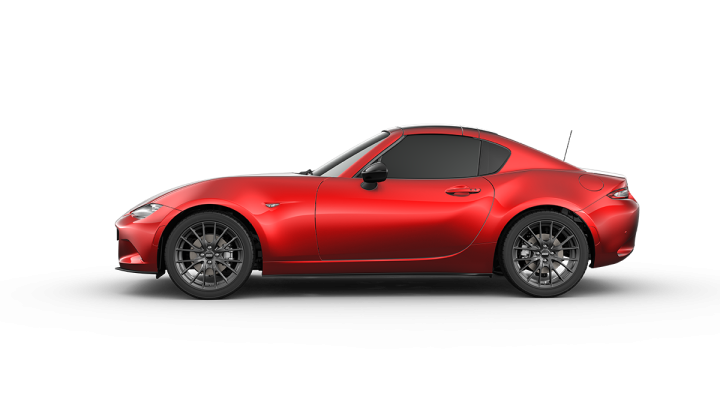

The Club Edition option can now be had in the manual transmission, so you are in full control of the drive. A drive that's sportier in Recaro seats and BBS wheels.

  • Best Sports Car

CHOOSE A STYLE

All
BUILD YOUR MX-5

MAZDA MX-5 RF FEATURES

  • GENERAL

    Engine: SKYACTIV-G 2.0L
    Transmission: SKYACTIV-DRIVE 6-Speed Automatic with Sport Mode
    Roof Color: Black

  • DIMENSIONS & WEIGHTS

    Overall Length (mm): 3,915
    Overall Width (mm): 1,735
    Overall Height (mm): 1,235
    Front Tread (mm): 1,495
    Rear Tread (mm): 1,505
    Wheelbase (mm): 2,310
    Minimum Turing Radius (m): 4.7
    Minimum Curb Weight (kg): 1,125

  • ENGINE

    In-line 4-Cylinder DOHC, 16 Valves
    Displacement (cc): 1,998
    13:1 Compression Ratio
    Electrically Controlled Fuel Injection
    Recommended Fuel: Minimum RON 95 Premium Unleaded
    Maximum Output (PS/rpm): 184 @ 7,000
    Maximum Torque (Nm/rpm): 205 @ 4,000
    Fuel Tank Capacity (L): 45

  • STEERING

    Rack and Pinion
    Tilt & Telescopic
    Leather Wrapped Steering Wheel
    Control Switch: Audio & Bluetooth Hands-Free
    Paddle Shifters
    Standard Cruise Control

  • SUSPENSION

    Front: Double Wishbone
    Rear: Multi-Link

  • BRAKES

    Front: Ventilated Discs
    Rear: Solid Discs

  • EXTERIOR

    Wheels Type: 17" BBS Wheels
    Wheels Color: Gun Metallic
    Tire Size: 205 / 45 R17
    Adaptive LED Headlamps with Auto On/Off
    LED Running Lamp
    Time-Adjustable Intermittent with Rain Sensor
    Dual-Type Exhaust Tail Pipe
    Side Mirror Type: Power Adjust
    Side Mirror Color: Black

  • INTERIOR

    Leather Wrapped Shift Knob
    Bluetooth Hands-Free System
    Automatic Single-Zone Climate Control
    Push Start / Stop Button
    Auto Dimming Rear View Mirror
    One-Touch Down Power Windows (Driver & Passenger)

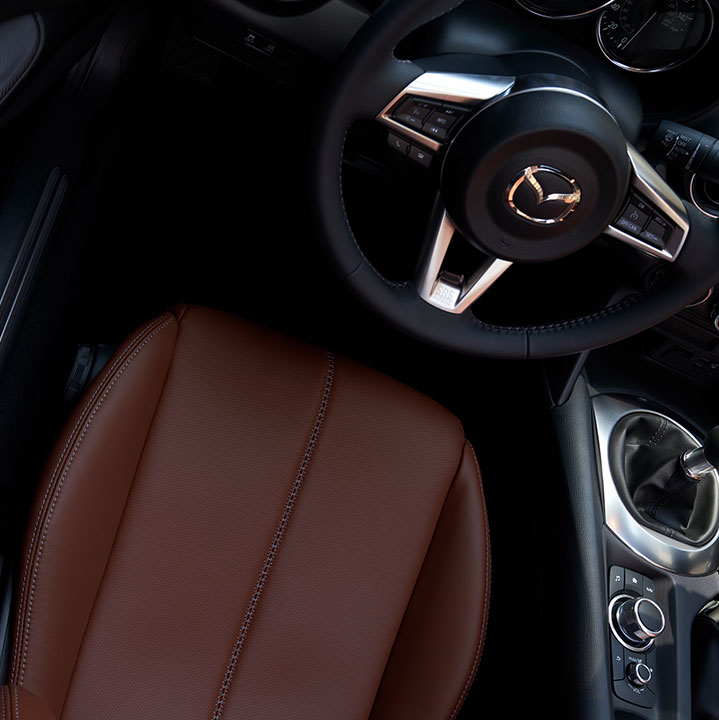

    Seating & Trim

    Material: Recaro Seats
    Color: Black with Red Accents

    Audio & Infotainment

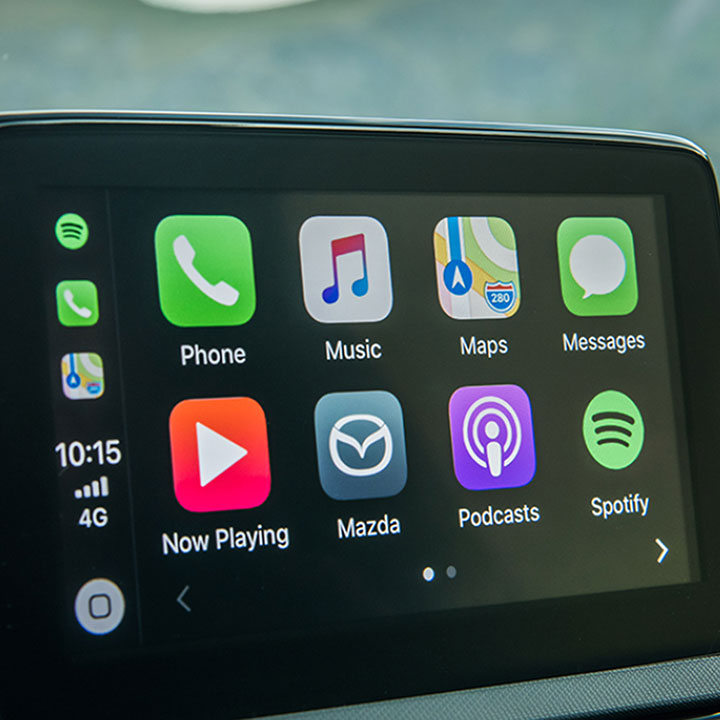

    Mazda Connect with Aux-in, 2-USB, Bluetooth, Wireless Apple Carplay & Android Auto

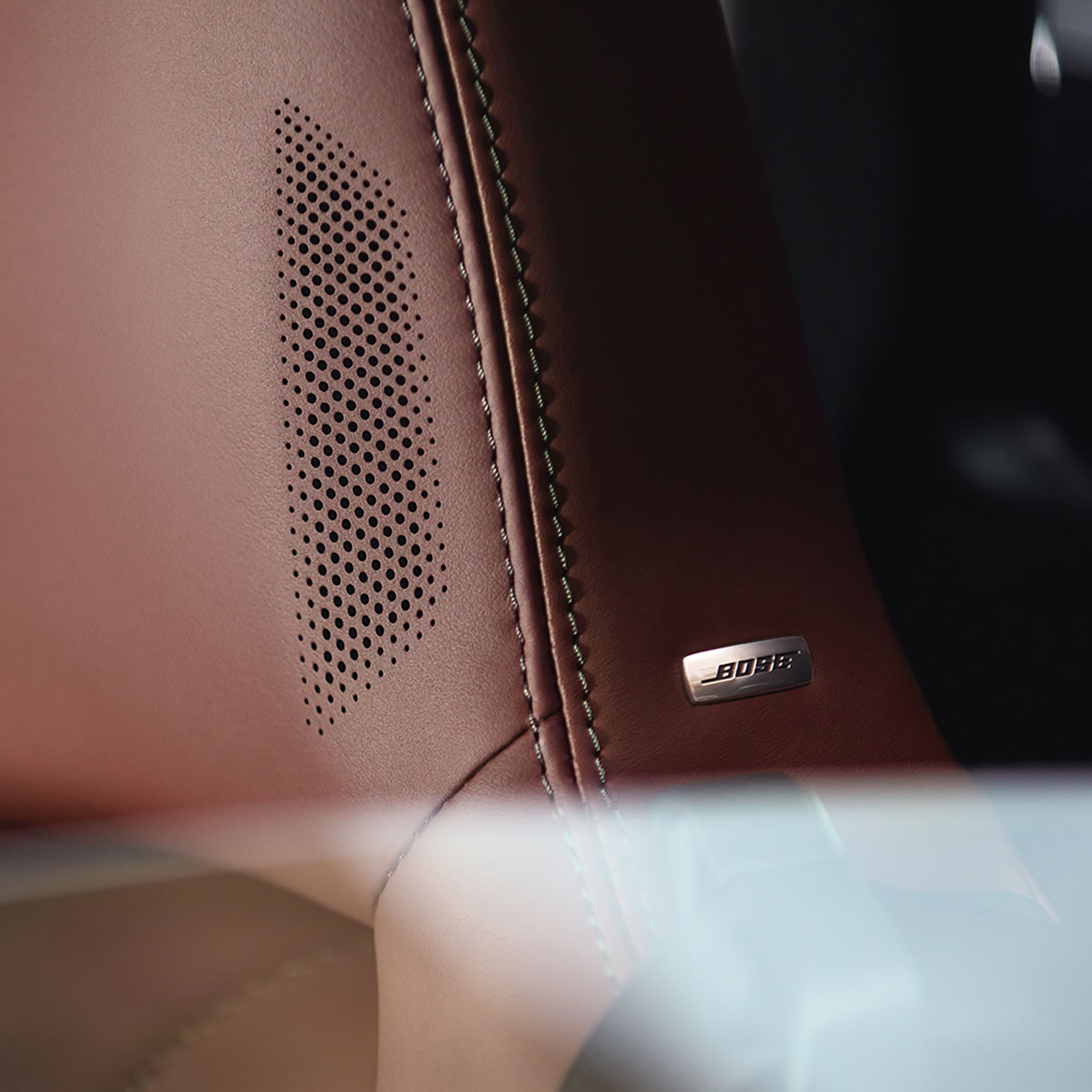

    9-Speaker BOSE Sound System

  • SAFETY & SECURITY

    Airbags: Dual Front & Side Airbags
    Anti-Lock Braking System with EBD (Electronic Brakeforce Distribution)
    Dynamic Stability Control (DSC)
    Smart Keyless Entry System
    Rear Parking Sensors
    Reverse Camera
    Seatbelt Warning Lamp

  • I-ACTIVSENSE

    Smart City Brake Support
    Lane Departure Warning

  • SPECIAL FEATURES

    i-STOP Engine Idling Stop System
    i-ELOOP Regenerative Braking System
    Kinematic Posture Control

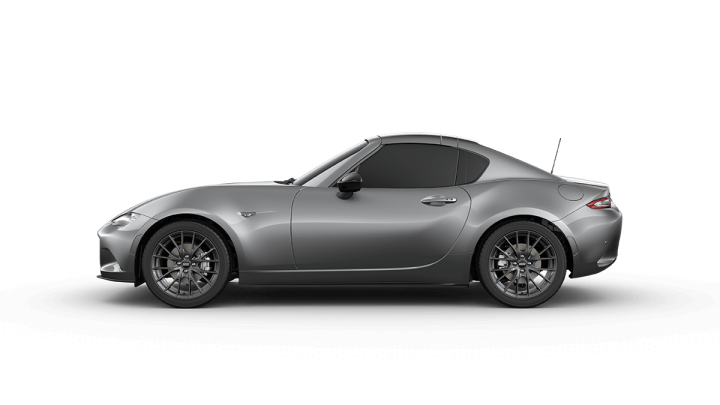

  • GENERAL

    Engine: SKYACTIV-G 2.0L
    Transmission: SKYACTIV-DRIVE 6-Speed Manual
    Roof Color: Black

  • DIMENSIONS & WEIGHTS

    Overall Length (mm): 3,915
    Overall Width (mm): 1,735
    Overall Height (mm): 1,235
    Front Tread (mm): 1,495
    Rear Tread (mm): 1,505
    Wheelbase (mm): 2,310
    Minimum Turing Radius (m): 4.7
    Minimum Curb Weight (kg): 1,096

  • ENGINE

    In-line 4-Cylinder DOHC, 16 Valves
    Displacement (cc): 1,998
    13:1 Compression Ratio
    Electrically Controlled Fuel Injection
    Recommended Fuel: Minimum RON 95 Premium Unleaded
    Maximum Output (PS/rpm): 184 @ 7,000
    Maximum Torque (Nm/rpm): 205 @ 4,000
    Fuel Tank Capacity (L): 45

  • STEERING

    Rack and Pinion
    Tilt & Telescopic
    Leather Wrapped Steering Wheel
    Control Switch: Audio & Bluetooth Hands-Free

  • SUSPENSION

    Front: Double Wishbone with Bilstein Dampers
    Rear: Multi-Link
    Limited Slip Differential
    Strut Bar

  • BRAKES

    Front: Ventilated Discs
    Rear: Solid Discs

  • EXTERIOR

    Wheels Type: 17" BBS Wheels
    Wheels Color: Gun Metallic
    Tire Size: 205 / 45 R17
    Adaptive LED Headlamps with Auto On/Off
    LED Running Lamp
    Time-Adjustable Intermittent with Rain Sensor
    Dual-Type Exhaust Tail Pipe
    Side Mirror Type: Power Adjust
    Side Mirror Color: Black

  • INTERIOR

    Leather Wrapped Shift Knob
    Bluetooth Hands-Free System
    Automatic Single-Zone Climate Control
    Push Start / Stop Button
    Auto Dimming Rear View Mirror
    One-Touch Down Power Windows (Driver & Passenger)

    Seating & Trim

    Material: Recaro Seats
    Color: Black with Red Accents

    Audio & Infotainment

    Mazda Connect with Aux-in, 2-USB, Bluetooth, Wireless Apple Carplay & Android Auto
    9-Speaker BOSE Sound System

  • SAFETY & SECURITY

    Airbags: Dual Front & Side Airbags
    Anti-Lock Braking System with EBD (Electronic Brakeforce Distribution)
    Dynamic Stability Control (DSC)
    Smart Keyless Entry System
    Rear Parking Sensors
    Reverse Camera
    Seatbelt Warning Lamp

  • I-ACTIVSENSE

    Smart City Brake Support
    Lane Departure Warning

  • Special Features

    i-STOP Engine Idling Stop System
    i-ELOOP Regenerative Braking System
    Kinematic Posture Control

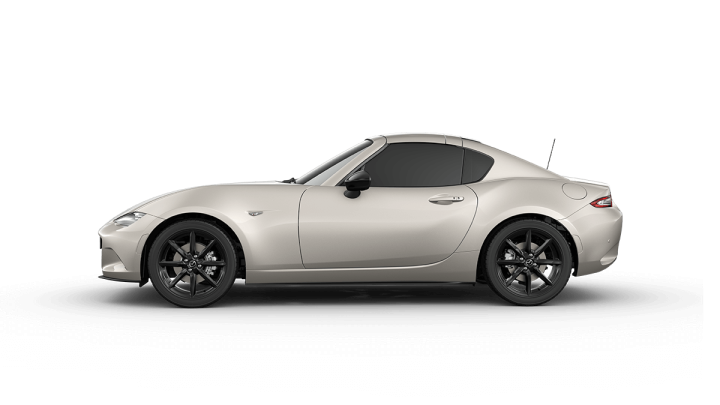

  • GENERAL

    Engine: SKYACTIV-G 2.0L
    Transmission: SKYACTIV-DRIVE 6-Speed Automatic with Sport Mode
    Roof Color: Body Color

  • DIMENSIONS & WEIGHTS

    Overall Length (mm): 3,915
    Overall Width (mm): 1,735
    Overall Height (mm): 1,235
    Front Tread (mm): 1,495
    Rear Tread (mm): 1,505
    Wheelbase (mm): 2,310
    Minimum Turing Radius (m): 4.7
    Minimum Curb Weight (kg): 1,125

  • ENGINE

    In-line 4-Cylinder DOHC, 16 Valves
    Displacement (cc): 1,998
    13:1 Compression Ratio
    Electrically Controlled Fuel Injection
    Recommended Fuel: Minimum RON 95 Premium Unleaded
    Maximum Output (PS/rpm): 184 @ 7,000
    Maximum Torque (Nm/rpm): 205 @ 4,000
    Fuel Tank Capacity (L): 45

  • STEERING

    Rack and Pinion
    Tilt & Telescopic
    Leather Wrapped Steering Wheel
    Control Switch: Audio & Bluetooth Hands-Free
    Paddle Shifters
    Standard Cruise Control

  • SUSPENSION

    Front: Double Wishbone
    Rear: Multi-Link

  • BRAKES

    Front: Ventilated Discs
    Rear: Solid Discs

  • EXTERIOR

    Wheels Type: 17" Aluminum Alloy Wheels
    Wheels Color: Black
    Tire Size: 205 / 45 R17
    Adaptive LED Headlamps with Auto On/Off
    LED Running Lamp
    Time-Adjustable Intermittent with Rain Sensor
    Dual-Type Exhaust Tail Pipe
    Side Mirror Type: Power Adjust
    Side Mirror Color: Black

  • INTERIOR

    Leather Wrapped Shift Knob
    Bluetooth Hands-Free System
    Automatic Single-Zone Climate Control
    Push Start / Stop Button
    Auto Dimming Rear View Mirror
    One-Touch Down Power Windows (Driver & Passenger)

    Seating & Trim

    Material: Nappa Leather / Leather
    Color: Terracotta / Black

    Audio & Infotainment

    Mazda Connect with Aux-in, 2-USB, Bluetooth, Wireless Apple Carplay & Android Auto
    9-Speaker BOSE Sound System

  • SAFETY & SECURITY

    Airbags: Dual Front & Side Airbags
    Anti-Lock Braking System with EBD (Electronic Brakeforce Distribution)
    Dynamic Stability Control (DSC)
    Smart Keyless Entry System
    Rear Parking Sensors
    Reverse Camera
    Seatbelt Warning Lamp

  • I-ACTIVSENSE

    Smart City Brake Support
    Lane Departure Warning

  • Special Features

    i-STOP Engine Idling Stop System
    i-ELOOP Regenerative Braking System
    Kinematic Posture Control

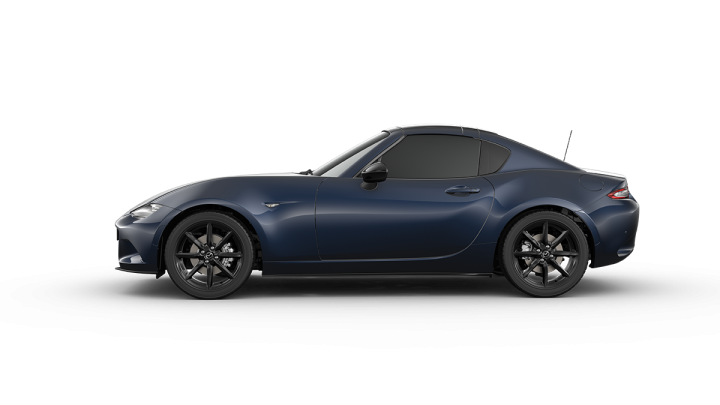

  • GENERAL

    Engine: SKYACTIV-G 2.0L
    Transmission: SKYACTIV-DRIVE 6-Speed Manual
    Roof Color: Black

  • DIMENSIONS & WEIGHTS

    Overall Length (mm): 3,915
    Overall Width (mm): 1,735
    Overall Height (mm): 1,235
    Front Tread (mm): 1,495
    Rear Tread (mm): 1,505
    Wheelbase (mm): 2,310
    Minimum Turing Radius (m): 4.7
    Minimum Curb Weight (kg): 1,096

  • ENGINE

    In-line 4-Cylinder DOHC, 16 Valves
    Displacement (cc): 1,998
    13:1 Compression Ratio
    Electrically Controlled Fuel Injection
    Recommended Fuel: Minimum RON 95 Premium Unleaded
    Maximum Output (PS/rpm): 184 @ 7,000
    Maximum Torque (Nm/rpm): 205 @ 4,000
    Fuel Tank Capacity (L): 45

  • Steering

    Rack and Pinion
    Tilt & Telescopic
    Leather Wrapped Steering Wheel
    Control Switch: Audio & Bluetooth Hands-Free

  • Suspension

    Front: Double Wishbone with Bilstein Dampers
    Rear: Multi-Link
    Limited Slip Differential
    Strut Bar

  • Brakes

    Front: Ventilated Discs
    Rear: Solid Discs

  • Exterior

    Wheels Type: 17" Aluminum Alloy Wheels
    Wheels Color: Black
    Tire Size: 205 / 45 R17
    Adaptive LED Headlamps with Auto On/Off
    LED Running Lamp
    Time-Adjustable Intermittent with Rain Sensor
    Dual-Type Exhaust Tail Pipe
    Side Mirror Type: Power Adjust
    Side Mirror Color: Black

  • Interior

    Leather Wrapped Shift Knob
    Bluetooth Hands-Free System
    Automatic Single-Zone Climate Control
    Push Start / Stop Button
    Auto Dimming Rear View Mirror
    One-Touch Down Power Windows (Driver & Passenger)

    Seating & Trim

    Material: Nappa Leather / Leather
    Color: Terracotta / Black

    Audio & Infotainment

    Mazda Connect with Aux-in, 2-USB, Bluetooth, Wireless Apple Carplay & Android Auto
    9-Speaker BOSE Sound System

  • Safety & Security

    Airbags: Dual Front & Side Airbags
    Anti-Lock Braking System with EBD (Electronic Brakeforce Distribution)
    Dynamic Stability Control (DSC)
    Smart Keyless Entry System
    Rear Parking Sensors
    Reverse Camera
    Seatbelt Warning Lamp

  • I-ACTIVSENSE

    Smart City Brake Support
    Lane Departure Warning

  • Special Features

    i-STOP Engine Idling Stop System
    i-ELOOP Regenerative Braking System
    Kinematic Posture Control
